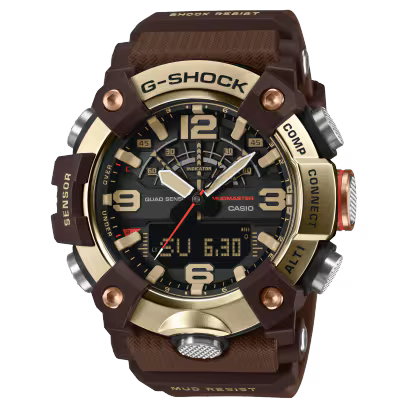

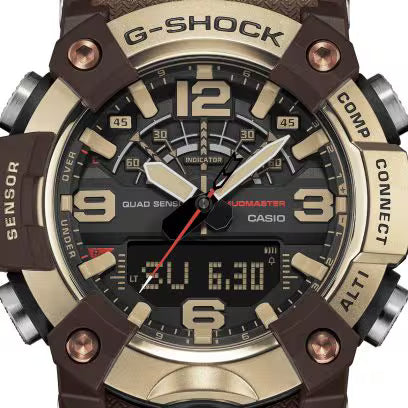

GG-B100XMH-5ADR

Basic Information

• Case Size: 55.4 × 51.3 × 19.4 mm

• Weight: 104 g

• Case and bezel material: Bio-based Carbon / Stainless steel

• Band: Bio-based resin band

• Construction: Shock Resistant, Mud Resistant, Carbon Core Guard structure

• Water resistance: 200-meter water resistance

• Time adjustment: Bluetooth: Connects to a smartphone and automatically adjusts the time

• Power supply and battery life: Approx. battery life: 2 years on CR2025

Sensor Features

• Step count: Using a 3-axis acceleration sensor; display range: 0 to 999,999 steps

• Power Saving: Auto sensor sleep state entry after a fixed period of inactivity

• Altimeter: Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.); measuring unit: 1 m (5 ft.); hand indication graph of altitude differential; manual memory measurements (up to 14 records, each including altitude, date, time); auto log data (high/low altitudes, cumulative ascent and descent); relative altitude readings (±100 m / ±1000 m); selectable measurement interval: 5 seconds or 2 minutes (1 second for the first 3 minutes only); changeover between meters (m) and feet (ft.)

• Barometer: Measuring range: 260 to 1,100 hPa (7.65 to 32.45 inHg); measuring unit: 1 hPa (0.05 inHg); hand indication of pressure differential (±10 hPa); atmospheric pressure tendency graph (last 20 hours or last 56 hours); barometric pressure tendency information alarm (beep and arrow indicates significant changes in pressure); atmospheric pressure tendency graph can show the last 20 minutes or last 56 minutes of measurements; hand indication of pressure differential shows values in units of ±0.1 hPa; changeover between hPa and inHg

• Digital compass: Measures and displays direction as one of 16 points; measuring range: 0 to 359°; measuring unit: 1°; 60 seconds continuous measurement; hand indication of north; magnetic declination correction; direction calibration (2-point calibration, figure eight calibration, auto calibration)

• Thermometer: Measuring range: -10 to 60°C (14 to 140°F); measuring unit: 0.1°C (0.2°F); changeover between Celsius (°C) and Fahrenheit (°F)

Smartphone Link/App Connectivity Features

Smartphone Link Feature

* Smartphone Link: Mobile link (Wireless linking using Bluetooth®)

Apps

* App: CASIO WATCHES

App Connectivity Features

• Auto time adjustment

• Easy watch setting

• World time: Approximately 300 world time cities

• Life log data

• Mission log

• Location Indicator

• Location Memory

• Mode/Display switching customization

• Auto altitude correction

• Phone finder

Exterior

• Glass: Mineral Glass

• Glass: Spherical Glass

• Surface treatment: Light yellow gold ion plated bezel

• Compatible band size: 145 to 215 mm

• Other: Neobrite

Watch Features

World Time

* World time: 38 time zones (38 cities + coordinated universal time), daylight saving on/off, Home city/World time city swapping

Sunrise/Sunset Display

* Sunrise/sunset time display: Sunrise and sunset times for a specific date

Stopwatch

• Stopwatch: 1/100-second stopwatch

• Measuring capacity: 00'00''00–59'59''99 (for the first 60 minutes); 1:00'00–23:59'59 (after 60 minutes)

• Measuring unit: 1/100 second (for the first 60 minutes); 1 second (after 60 minutes)

• Measuring modes: Elapsed time, split time, 1st–2nd place times

Timer

• Timer: Countdown timer

• Measuring unit: 1 second

• Countdown range: 24 hours

• Countdown start time setting range: 1 second to 24 hours (1-minute increments and 1-hour increments)

Alarm/Hourly Time Signal

• Alarm: 5 daily alarms

• Hourly time signal

Light

• Light: Double LED light

• LED light for the face: Auto LED light, Super Illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow

• LED backlight for the digital display: Auto LED light, Super Illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow

• Light color: White LED

Calendar

* Calendar: Full auto-calendar (to year 2099)

Mute Feature

* Mute feature: Button operation tone on/off

Accuracy

* Accuracy: ±15 seconds per month (with no mobile link function)

Other Features

• 12/24-hour format

• Hand shift feature: Hands move out of the way to provide an unobstructed view of digital display contents

• Regular timekeeping: Analog: 3 hands (hour, minute; hand moves every 10 seconds, second); Digital: Hour, minute, second, AM/PM, month, date, day
